Razzo Rosso Forged 94mm Piston Kit

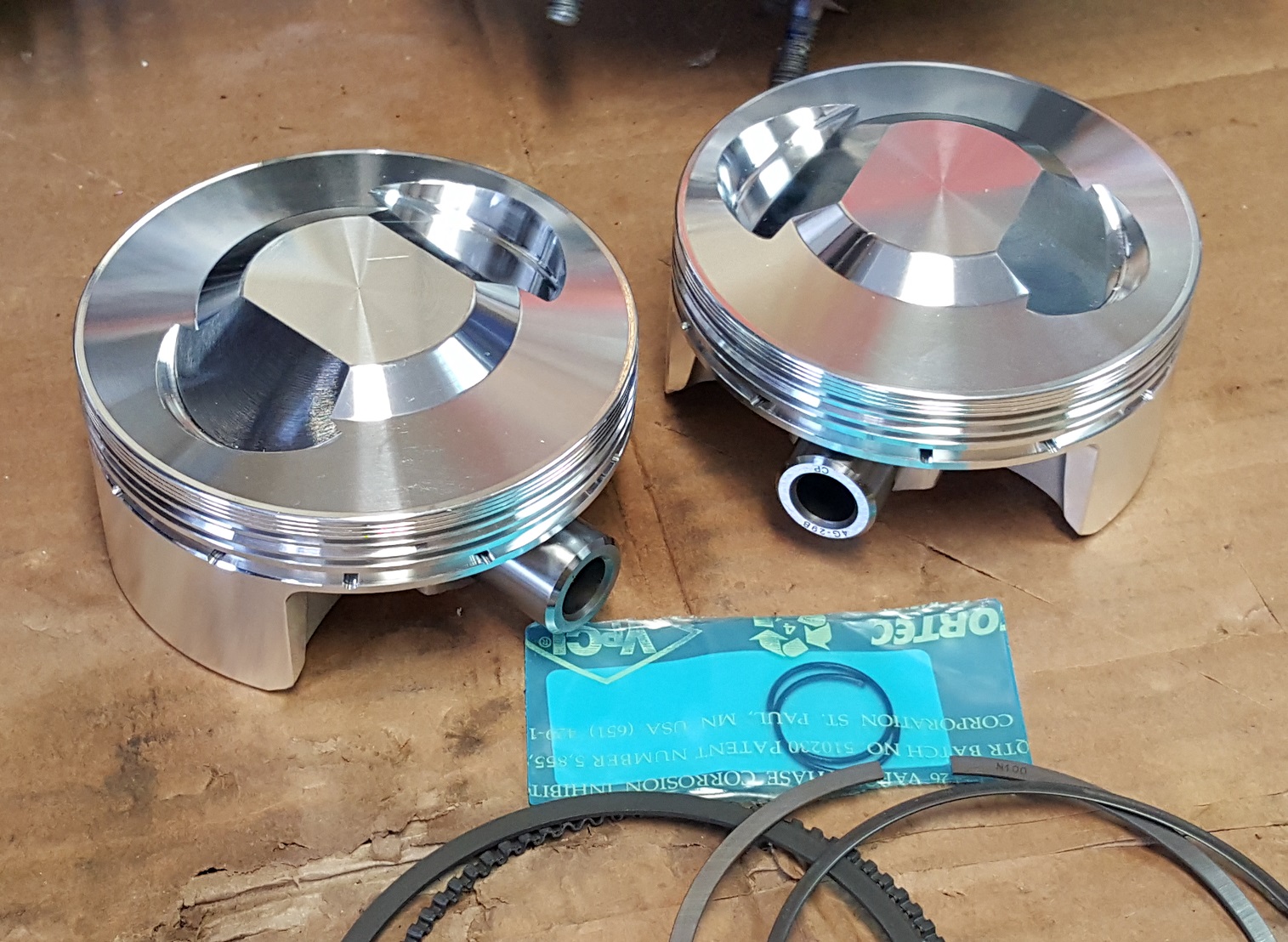

The piston kit consists of the following:

• 2 x 94mm forged, high-compression pistons

• 2 x Piston pins

• 2 x Pin locks (pairs)

• 2 x Piston ring sets

The advantages of this kit over other big bore kits:

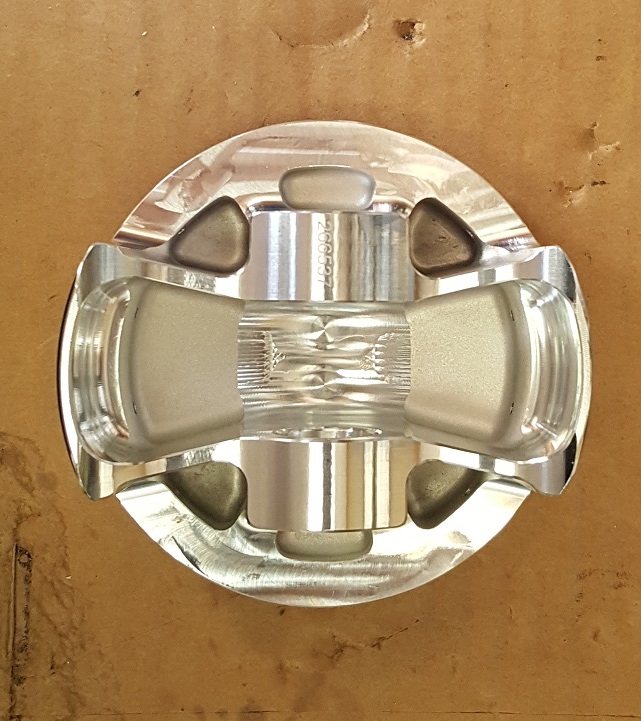

• Lightweight pistons with short pin

• Bare piston weight is 333 grams

• Total piston weight with pin, locks and rings is 433 grams

• Correct compression ratio for the street (10.5:1)

• Good value compared to the higher-end kits

• Also available in 92mm (stock bore size) if you don’t want to bore out the cylinders

This Razzo Rosso piston kit was carefully developed to fill the gap between lower-cost old technology piston kits and some of the higher cost European piston kits. Combining the Euro-design features with made-in-America quality, these Razzo Rosso pistons provide Dyno developed maximum performance for the street, at a reasonable price. Call 949-378-3226 to order.

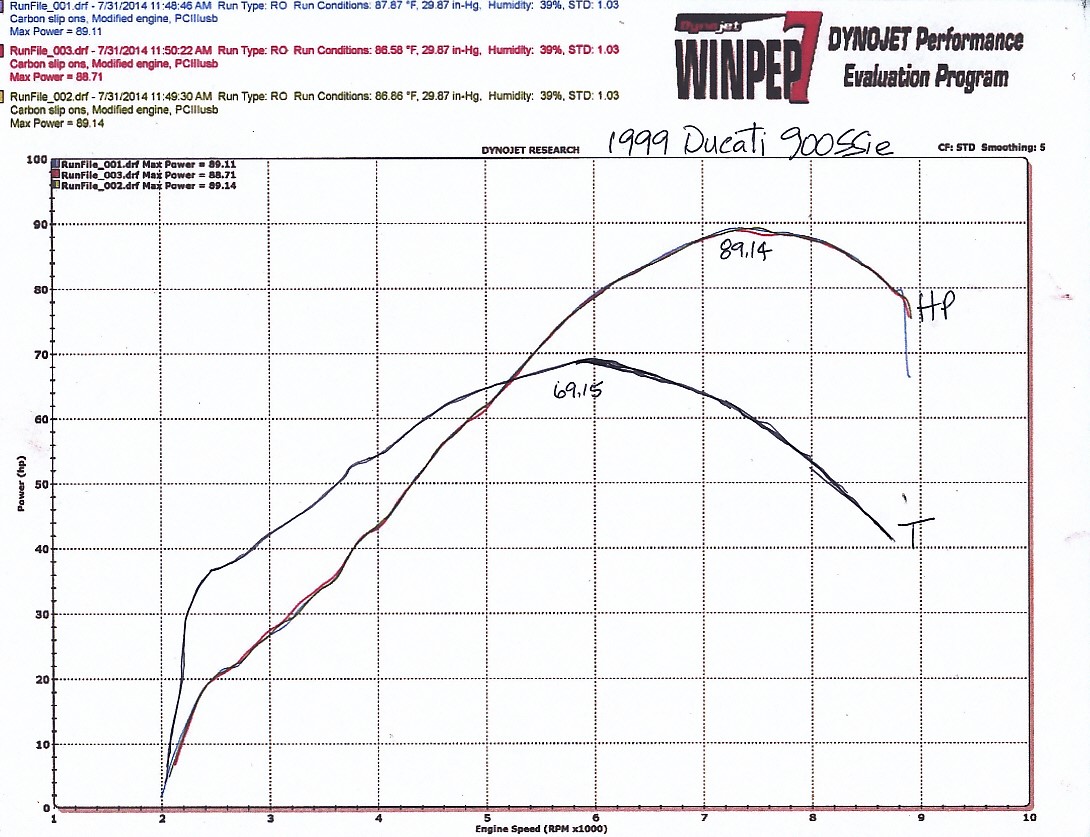

In the dyno graph below, The Razzo Rosso piston kit was used in a stock 900SS with only mild intake porting done to it. It was tuned with a PCIII for the correct air-fuel ratio. The exhaust was a Termignoni CF muffler only system with standard headers.

The torque number was a direct result of the bigger bore (944cc) and higher compression ratio. Your results may vary.

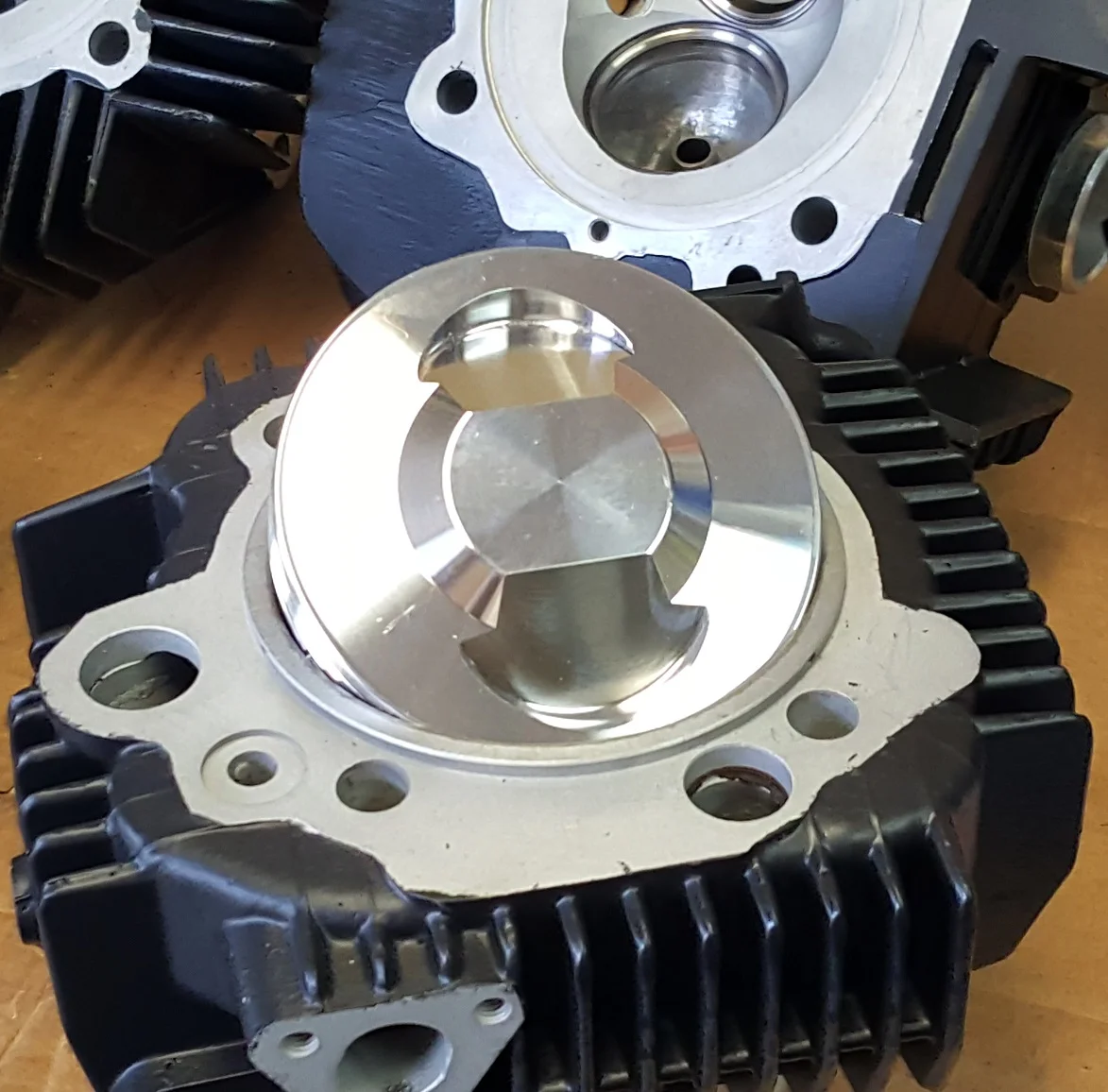

Piston Mounted on Cylinder
